UAV brake assembly
A compact hydraulic brake with a multi-disc stack and four-piston caliper.
The brief
Package a hydraulic brake for a UAV, considering thermal and mechanical requirements.
The approach

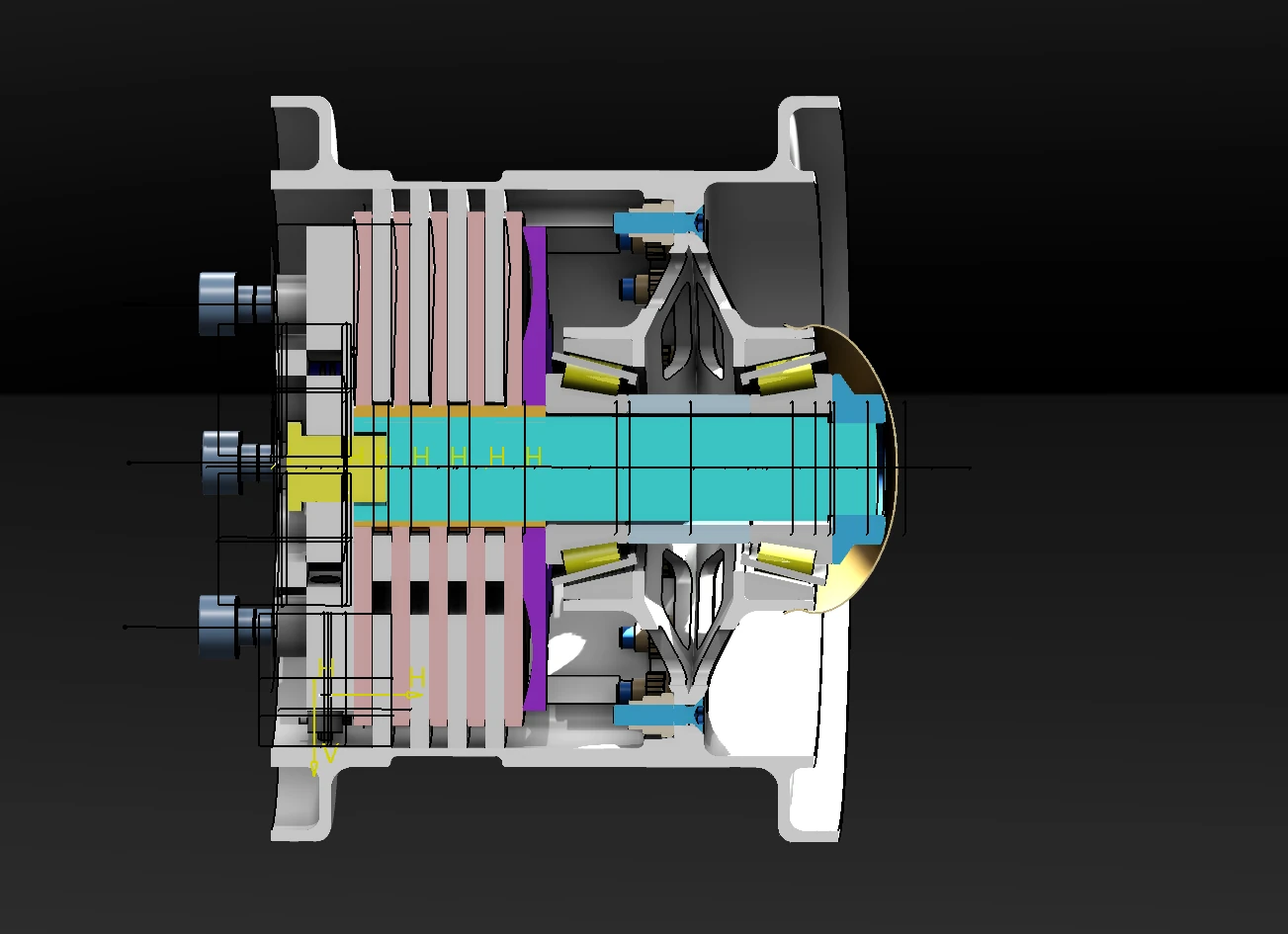

The CAD assembly combines five stators and four rotors with internal fluid passages, a bleed valve and a hose interface. Materials were selected around the component requirements.
Work shown
- Brake assembly CAD
- Hydraulic passage design
- Material selection
